The Cube Orange+ Standard Set

0 review
5/5

$350.00

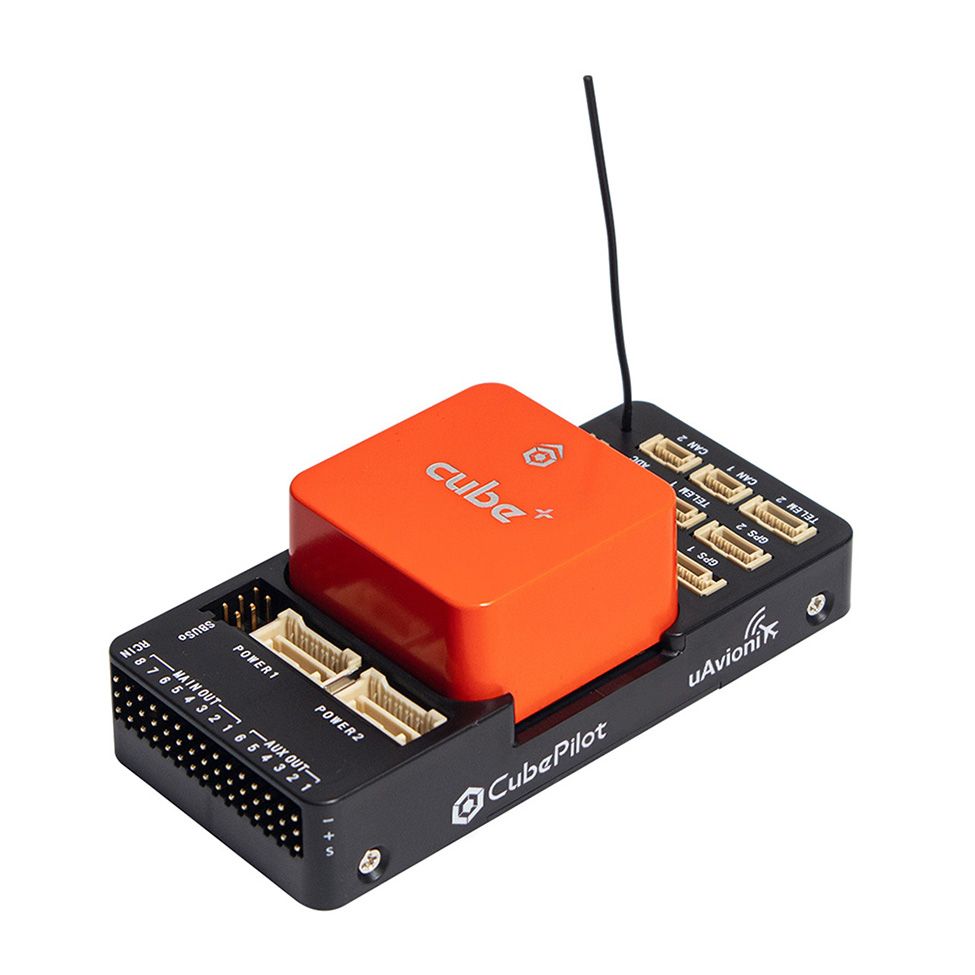

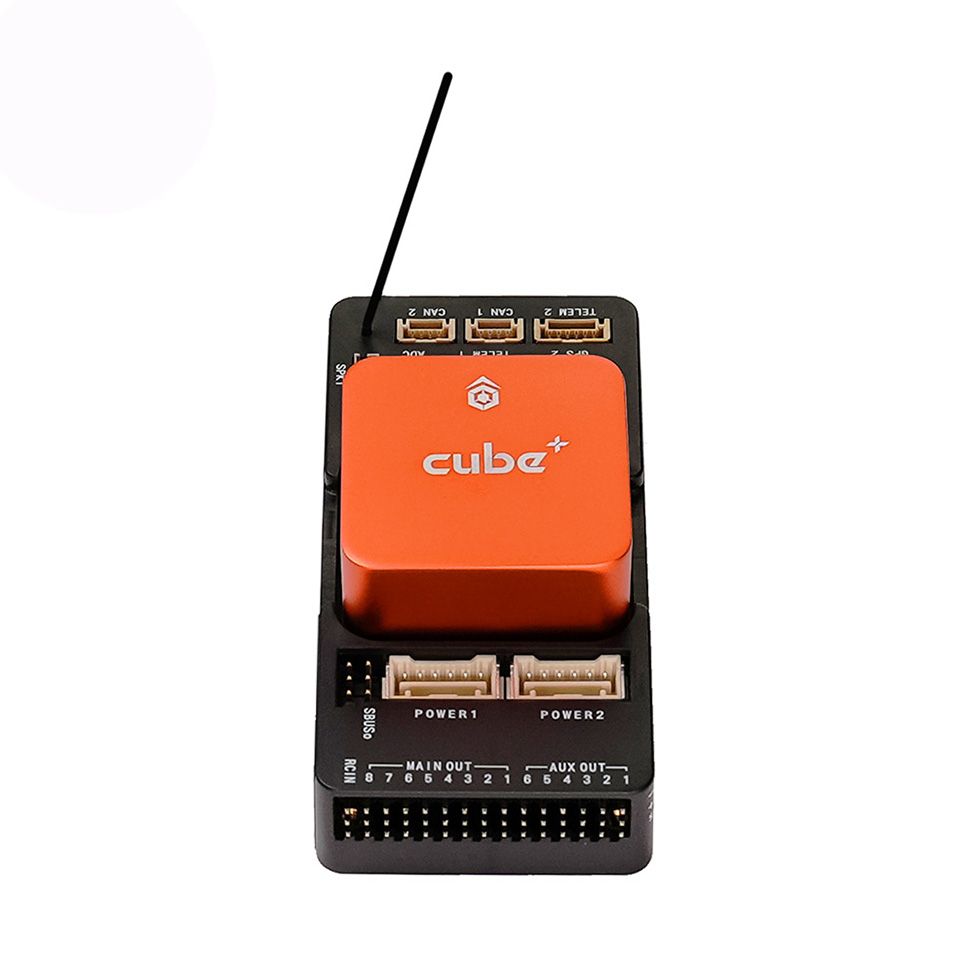

Cube Orange+ Standard Set (Cube Orange+ and ADS-B Carrier Board)

15 in stock

SKU 9359453000374 Category

We offer flexible payment options, including credit card payments through all major brands and specialized financing through Stearns Bank.

Description

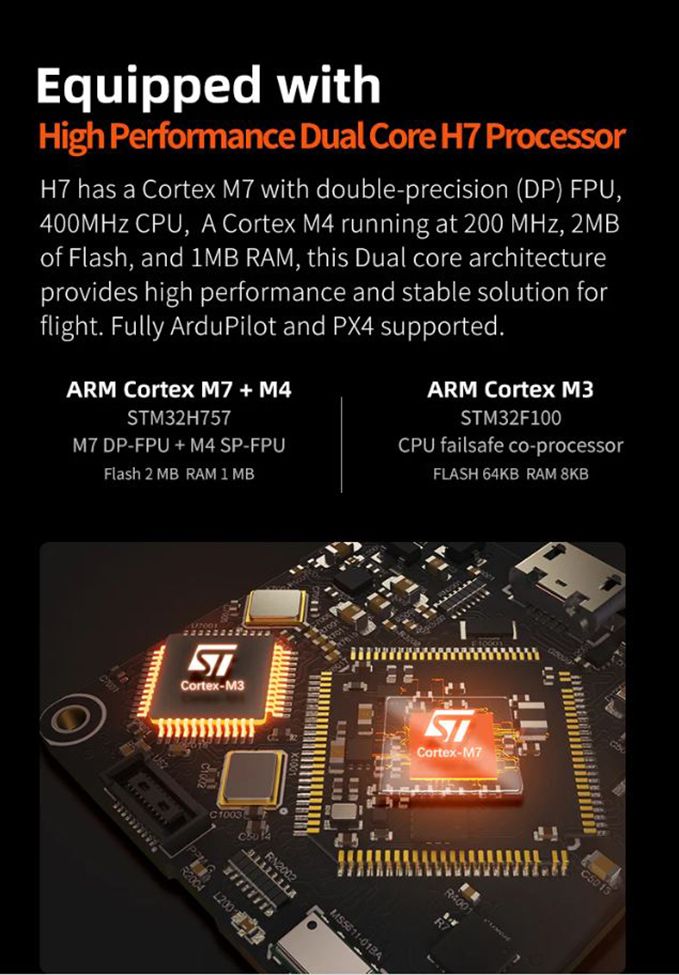

The Cube Orange+ Standard Set features a high-performance H7 processor and the 1090MHz ADS-B receiver from uAvionix. The Cube Orange+ has upgraded IMUs and the STM32H757 MCU. The autopilot can be set up to automatically avoid aircraft that are detected in an exclusion zone set by the pilot. Previously known as Pixhawk 2.1.

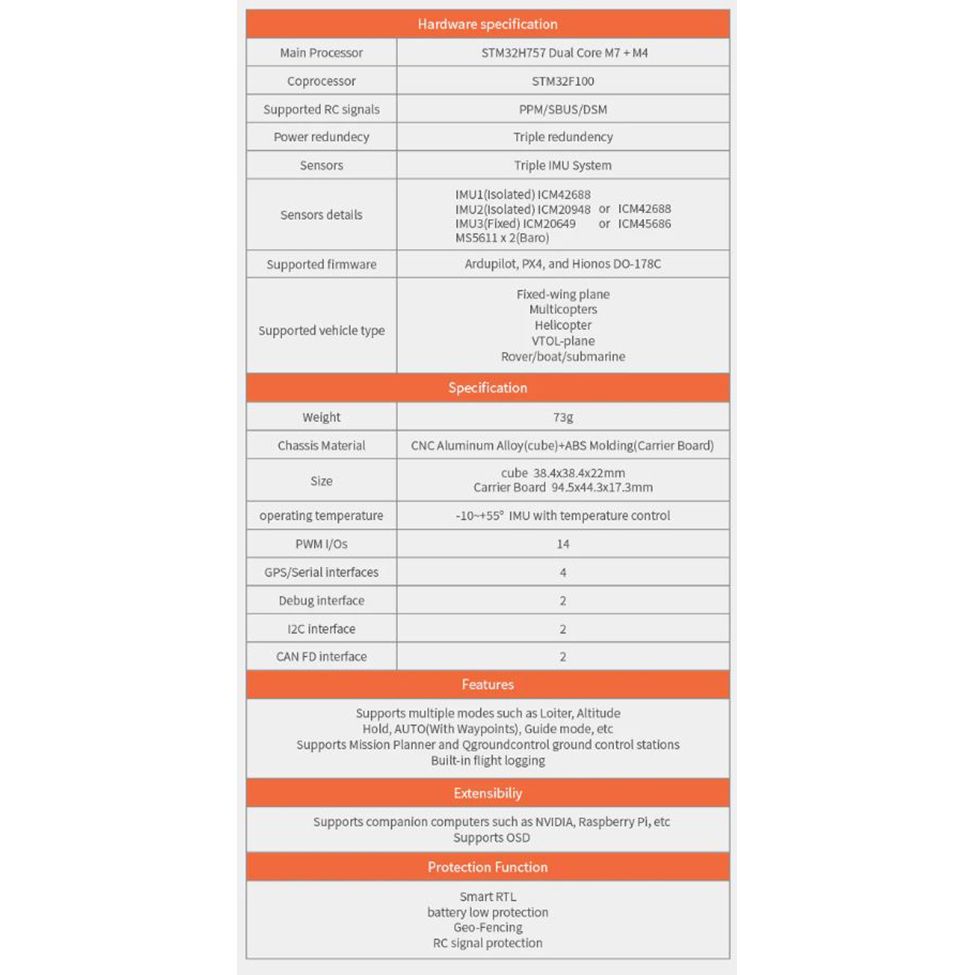

Features

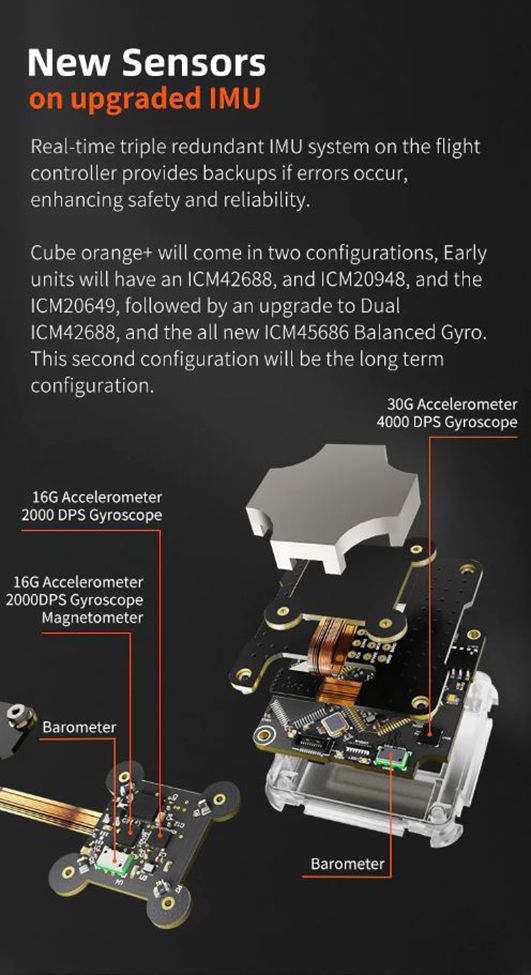

  • Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
  • Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
  • Power rated output/input power: 14 W
  • USB port input voltage/rated input current: 4-5.7 V / 250 mA

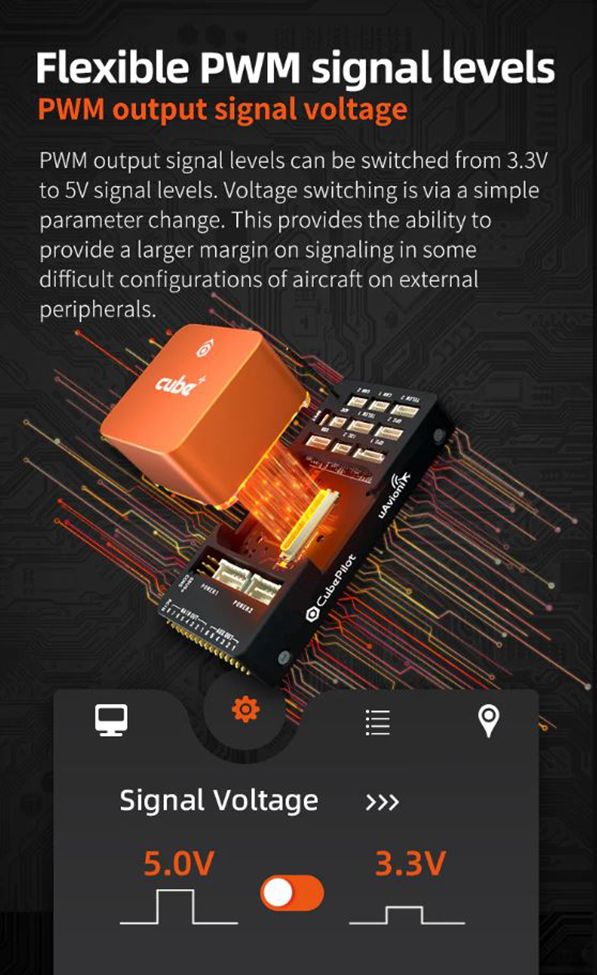

  • Servo rail input voltage: 3.3 V / 5 V
  • Not waterproof. External waterproof protection is needed
  • Operation Temperature: -10 °C / 55 °C
  • Cube Orange+ Housing Material: CNC Aluminum Alloy
  • ADSB Carrier Board Housing Material: ABS Molding

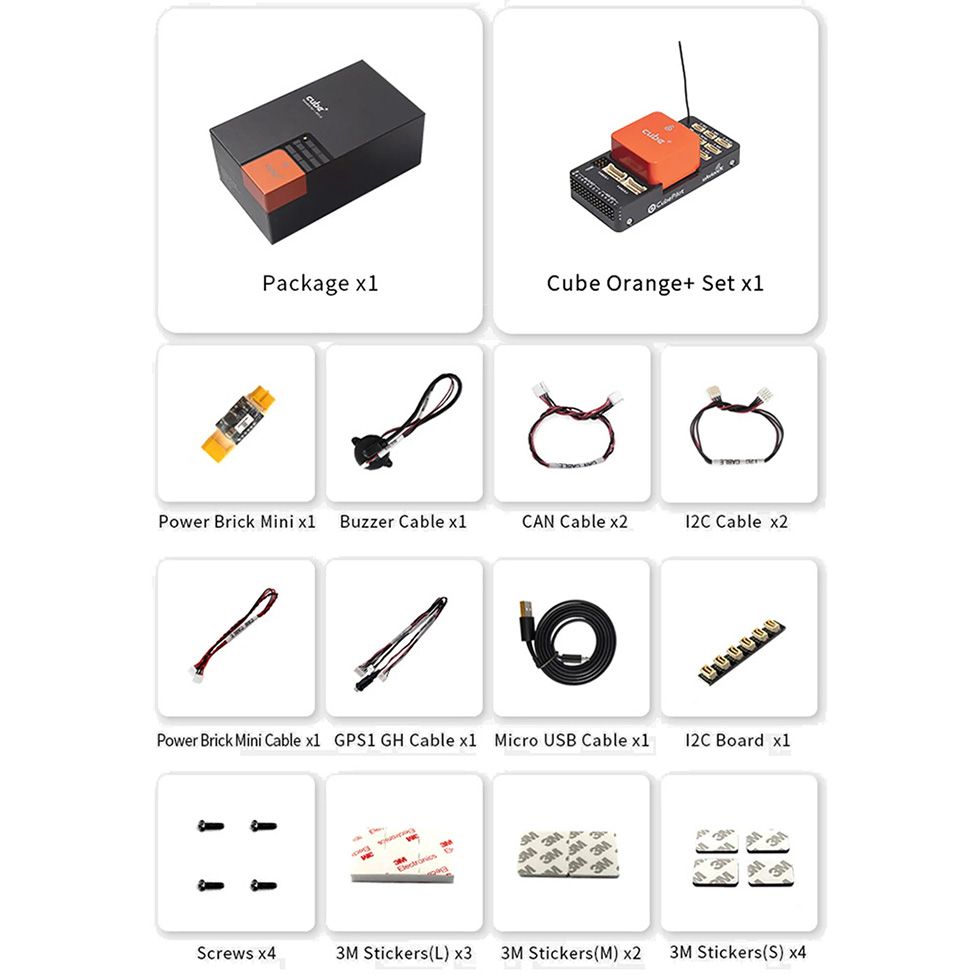

What’s Included

1x Cube Orange+
1x ADSB Carrier Board
1x Power Brick Mini
1x I2C Board
1x Buzzer Cable
2x CAN Cable
1x Power Brick Mini Cable
1x GPS1 Cable
1x Micro USB Cable
2x I2C Cable
4x Mounting Screw
3x 3M Large Sticker
2x 3M Medium Sticker
4x 3M Small Sticker

Additional information

Weight .731 lbs

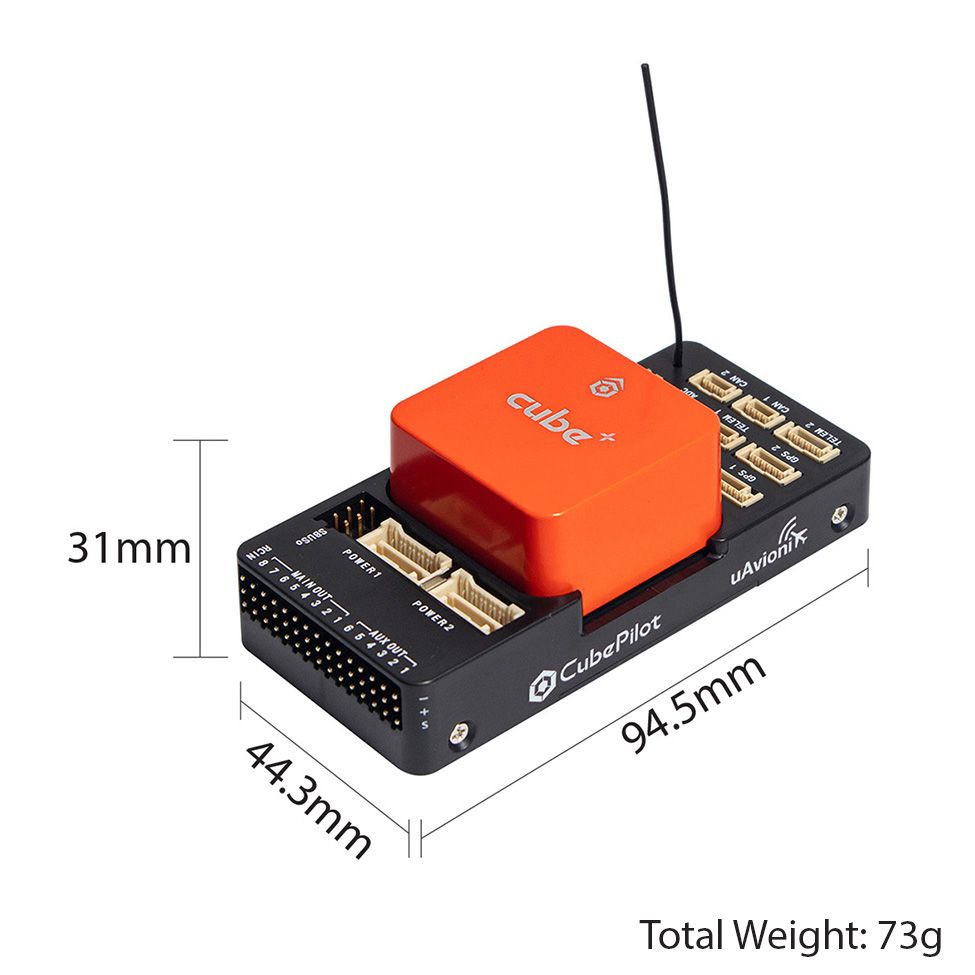

Dimensions 6.5 × 3.75 × 2 in
