PARASAFE Commercial Drone Parachute System

Description

Proven System

Our energetic technology is industry proven with over 100-years of know-how in this field. We pride ourselves in producing high reliability components. Our energetic actuator is fast deploying, reliable, and tested in accordance with stringent industry standards. Built to last and designed around our automotive safety technology, this system will deliver as promised. We stand behind the quality of our products.

Deployment

Designed to be deployed manually or autonomously, our proprietary system is dependable and tested in accordance with ASTM standards. High-speed deployment enables low-speed descent to protect drones, people, and objects.

By using pyrotechnics instead of springs to deploy parachutes, larger parachutes can be deployed at higher speeds.

Easy Install

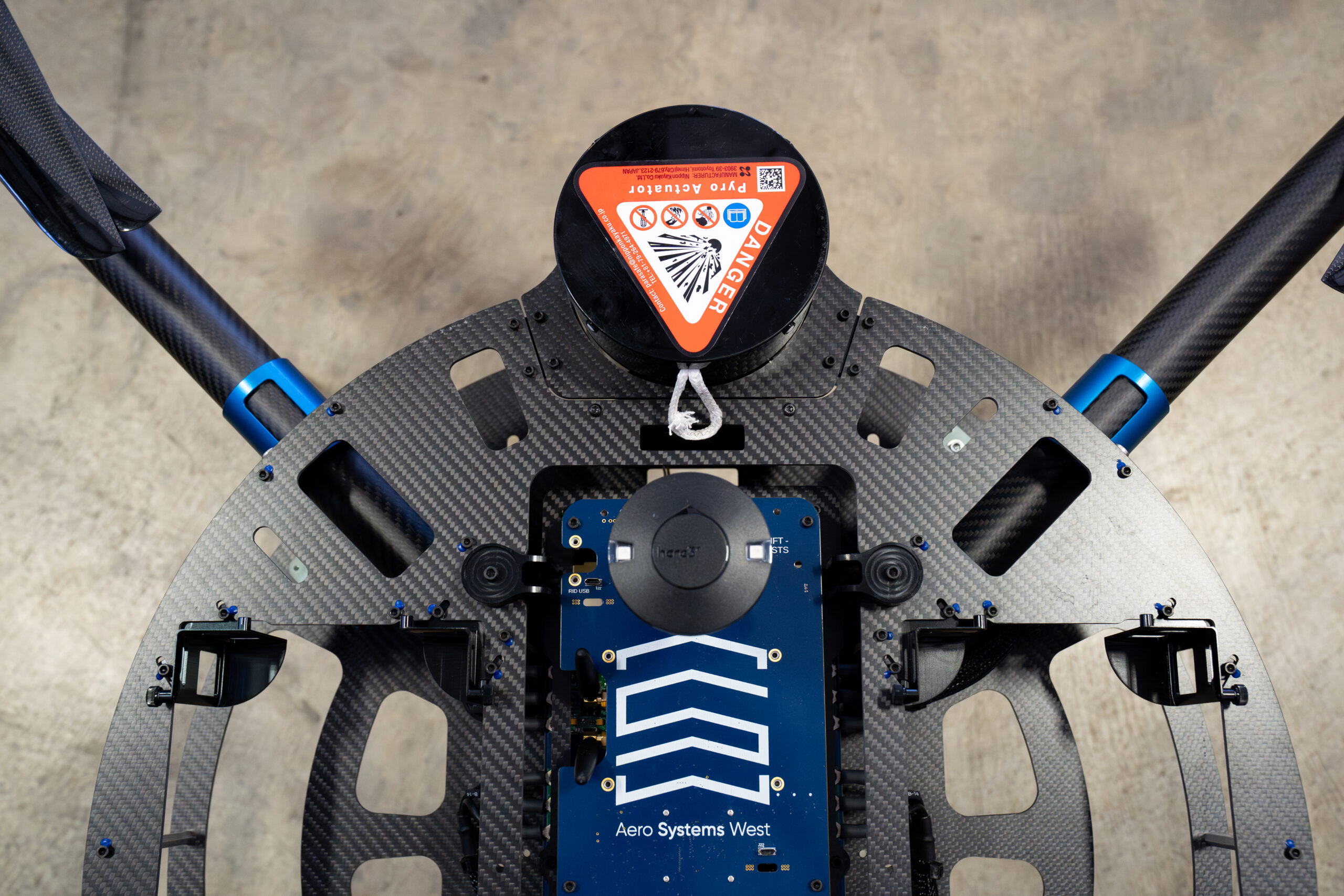

PARASAFE is designed for easy installation and can be mounted in various orientations. We recognize that not all drones are built the same so let us assist you. Our engineers. We can work with your team on any special mounting requests or offer creative solutions. Our installation manual and videos provide valuable guidance in the installation process.

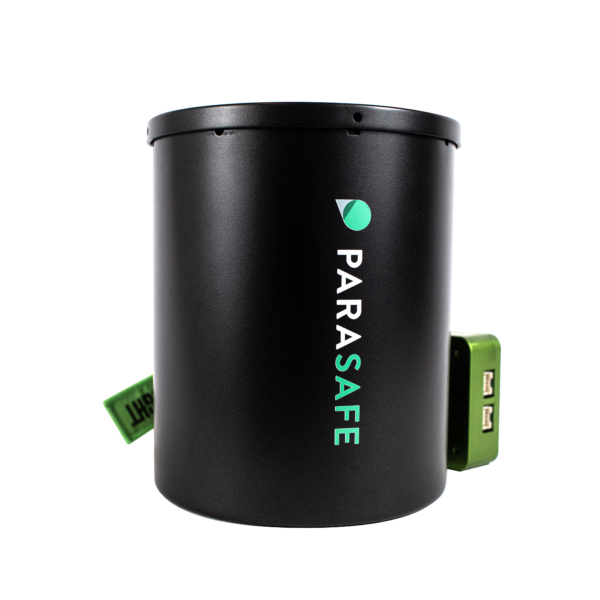

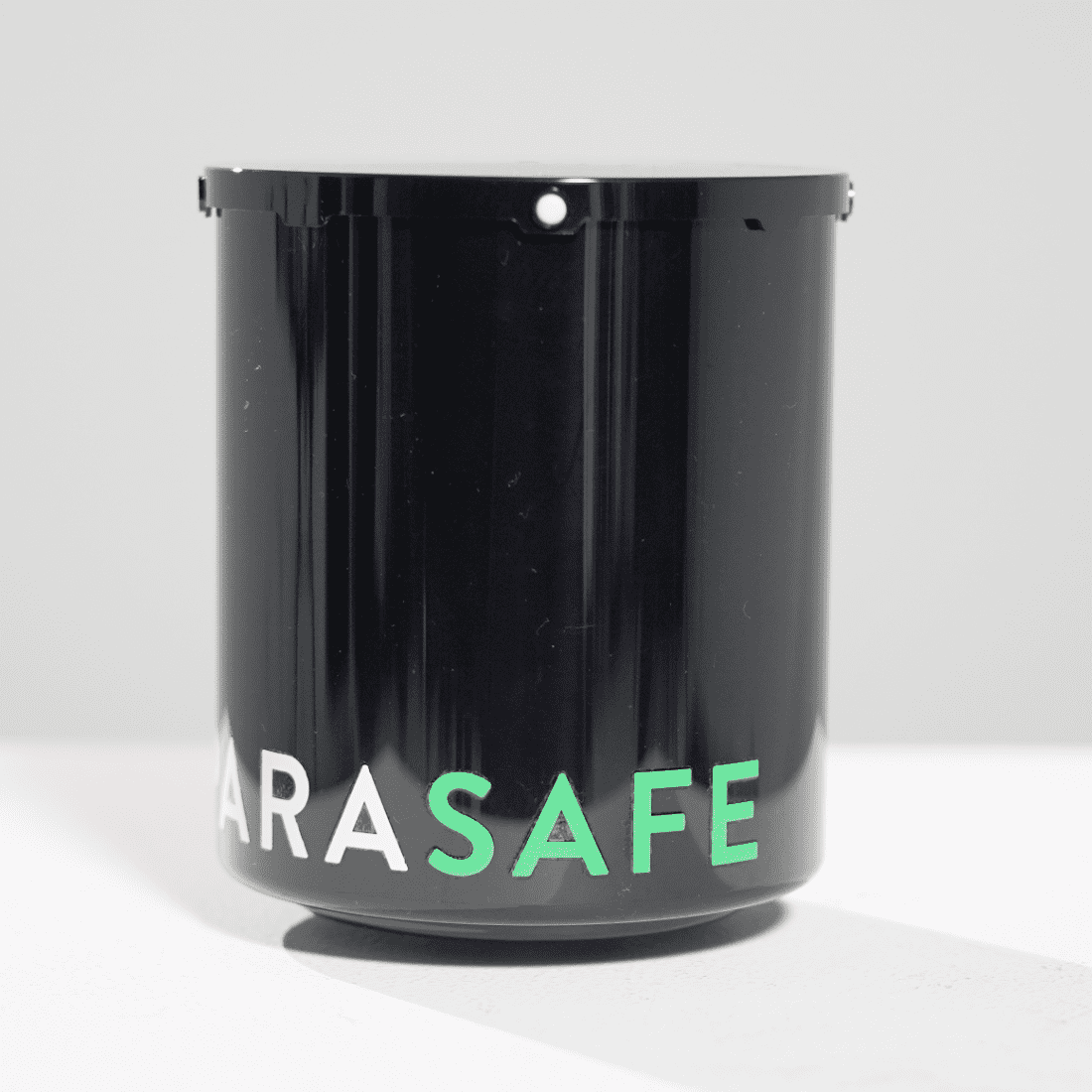

PARASAFE® Canister Specifications (PS-CA12-01)

Weight	900grams
Product Size	Φ130mm x H145mm = Φ5″ x H6″

Parachute

Performance Supportable Weight	25kg = 55lbs
Parachute Size (Area)	11㎡ = 118 ft²
Decent Rate	6 m/s at 25kg

Available Triggering Systems for PARASAFE®

(ATS) Automatic Triger System

Dimension	W 100mmxD 62mmxH 21mm
Weight	110g
Operating Temp	0 – 40℃
Weather Performance	IP53

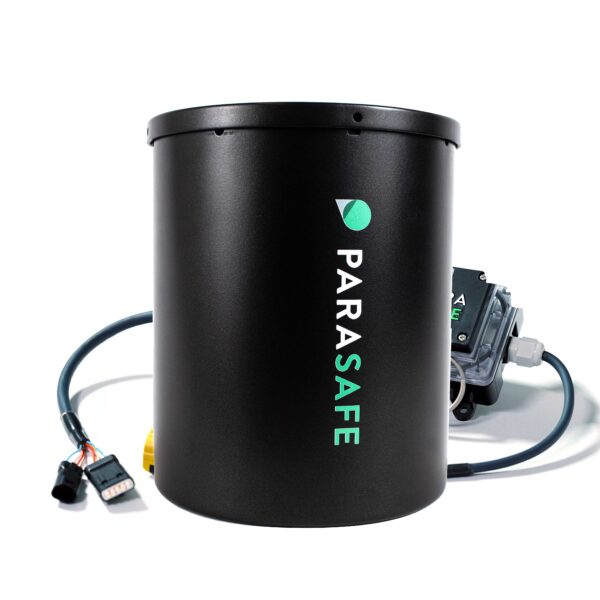

(MTS) Automatic Triger System

Dimension	W 84 mm×D 60 mm×H 37 mm
Weight	120g
Operating Temp	0 – 40℃
Weather Performance	IP54
Product Manual

Additional information

Weight	N/A
Dimensions	N/A
MTOW	25kg
Triggering System	Automatic, Manual
